JMA-3340-4 X-Band Radar
The perfect JRC X-band marine radar for non IMO vessels
Scanner length: 4 ft
Output power: 10 kW
Rotation speed: 27-48 rpm
Display: 10.4 inch LCD display
Specification
| Output power | 10 kW |
| Scanner length | 4 ft |
| Rotation speed | 16-27 rpm |
| Power | 12V to 24V DC |
| Consumption | 100 W (max 230 W) |
| Range scale | 0.125 /0.25 / 0.5 / 0.75 / 1.5 / 3 / 6 / 12 / 24 / 48 / 72 NM |
| Display | 10.4 inch LCD display |
| MARPA+™ | 10 targets (auto/manual) |
| MARPA+™ tracking range | 20 NM |
| AIS targets | 50 target |
What's in the box
4 ft arctic scanner, 10kW X-BAND
10.4 inch LCD display unit incl. u-bracket
20 meter scanner cable w/connectors
5 meter power cable w/connector
Protective display cover
Standard spare parts
User manual
Shipment Details
Total weight: 47 kg
Number of boxes: 3
Box 1 weight: 7 kg
Box 1 dimensions (cm): L37 / W37 / H18
Box 2 weight: 9 kg
Box 2 dimensions (cm): L38 / W27 / H28
Box 3 weight: 31 kg
Box 3 dimensions (cm): L74 / W45 / H49

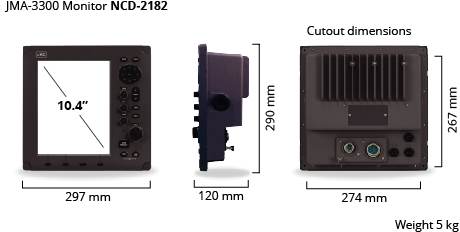

Dimensions
Downloads
