JMA-3336 X-band radar
The perfect JRC X-band marine radar for non IMO vessels
Scanner length: 3.9 ft
Output power: 6 kW
Rotation speed: 16-27 rpm
Display: 10.4 inch LCD display
Specification
| Output power | 6 kW |
| Scanner length | 3.9 ft |
| Rotation speed | 16-27 rpm |
| Power | 12V to 24V DC |
| Consumption | 85 W (max 180 W) |
| Range scale | 0.125 /0.25 / 0.5 / 0.75 / 1.5 / 3 / 6 / 12 / 24 / 48 / 72 NM |
| Display | 10.4 inch LCD display |
| MARPA+™ | 10 targets (auto/manual) |
| MARPA+™ tracking range | Up to 20 NM |
| AIS targets | 50 target |
What's in the box
3.9 ft open scanner, 4kW X-BAND
10.4 inch LCD display unit incl. u-bracket
20 meter scanner cable w/connectors
5 meter power cable w/connector
3 pcs connectors for GPS, NMEA and GPS compass
Protective display cover
Standard spare parts
User manual
10.4 inch LCD display unit incl. u-bracket
20 meter scanner cable w/connectors
5 meter power cable w/connector
3 pcs connectors for GPS, NMEA and GPS compass
Protective display cover
Standard spare parts
User manual
Shipment Details
Total weight: 47 kgNumber of boxes: 3
Box 1 weight: 32 kg
Box 1 dimensions (cm): L132 / W43 / H51
Box 2 weight: 9 kg
Box 2 dimensions (cm): L38 / W29 / H41
Box 3 weight: 6 kg
Box 3 dimensions (cm): L37 / W37 / H18

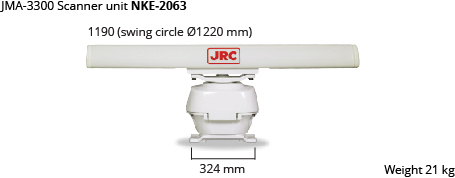

Dimensions
Downloads
